OpenAPI Documentation

Rage includes built-in support for generating OpenAPI specifications automatically from your controllers. Rage::OpenAPI analyzes your routes and controller code to create interactive API documentation.

Try It First

Before setting up your own project, try the OpenAPI Playground to see how Rage::OpenAPI works. Experiment with different tags and serializers to understand the features available.

Setup

Mount Rage::OpenAPI in your application to expose an OpenAPI specification endpoint.

Option 1: Mount in config.ru

map "/publicapi" do
  run Rage::OpenAPI.application
end

Option 2: Mount in Routes

Rage.routes.draw do
  mount Rage::OpenAPI.application, at: "/publicapi"
end

Basic Usage

Let's say you have these routes defined:

Rage.routes.draw do
  namespace :api do
    namespace :v1 do
      resources :users, only: %i[index show create]
      resources :photos, only: :index
    end

    namespace :v2 do
      resources :users, only: :show
    end
  end
end

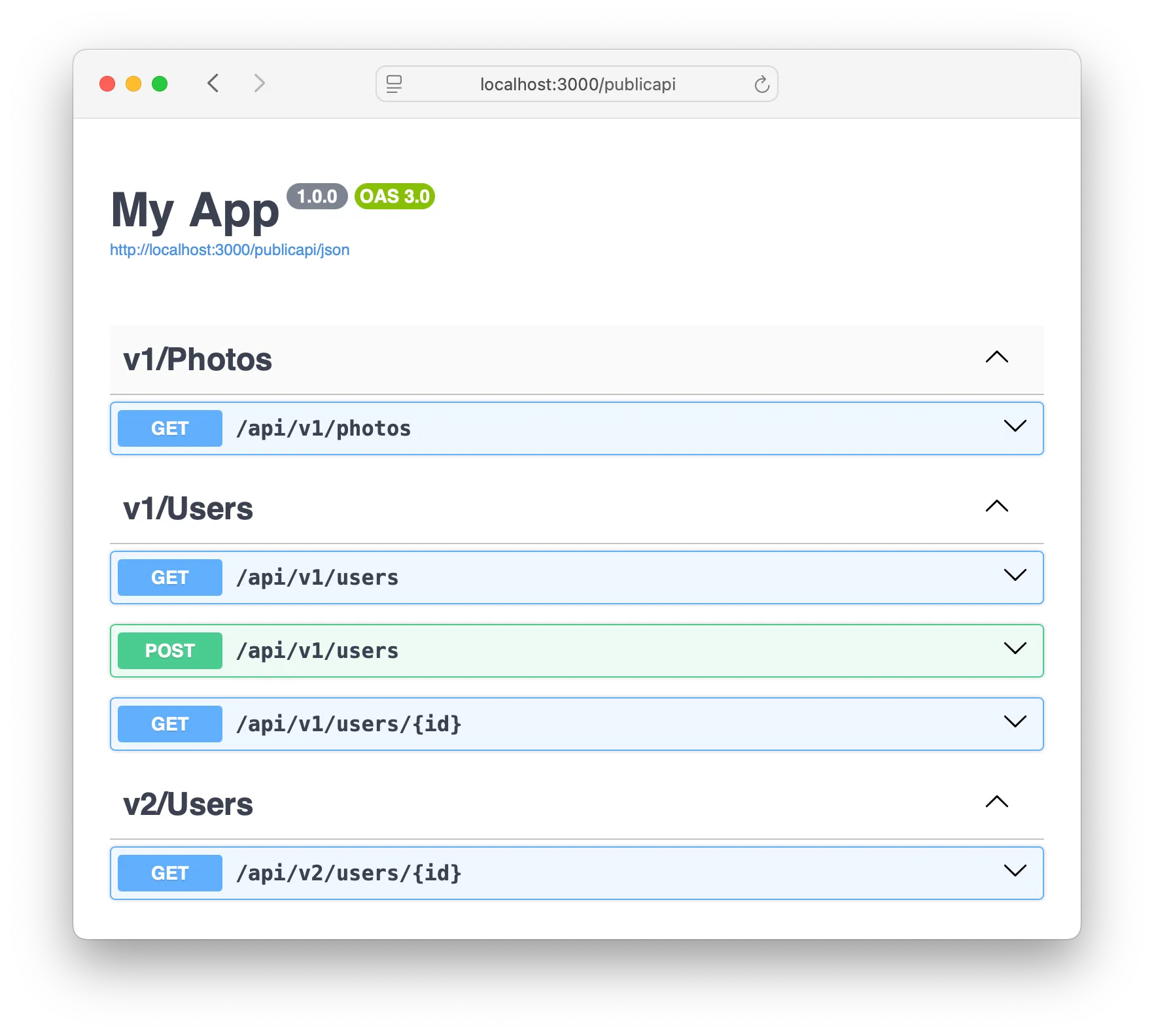

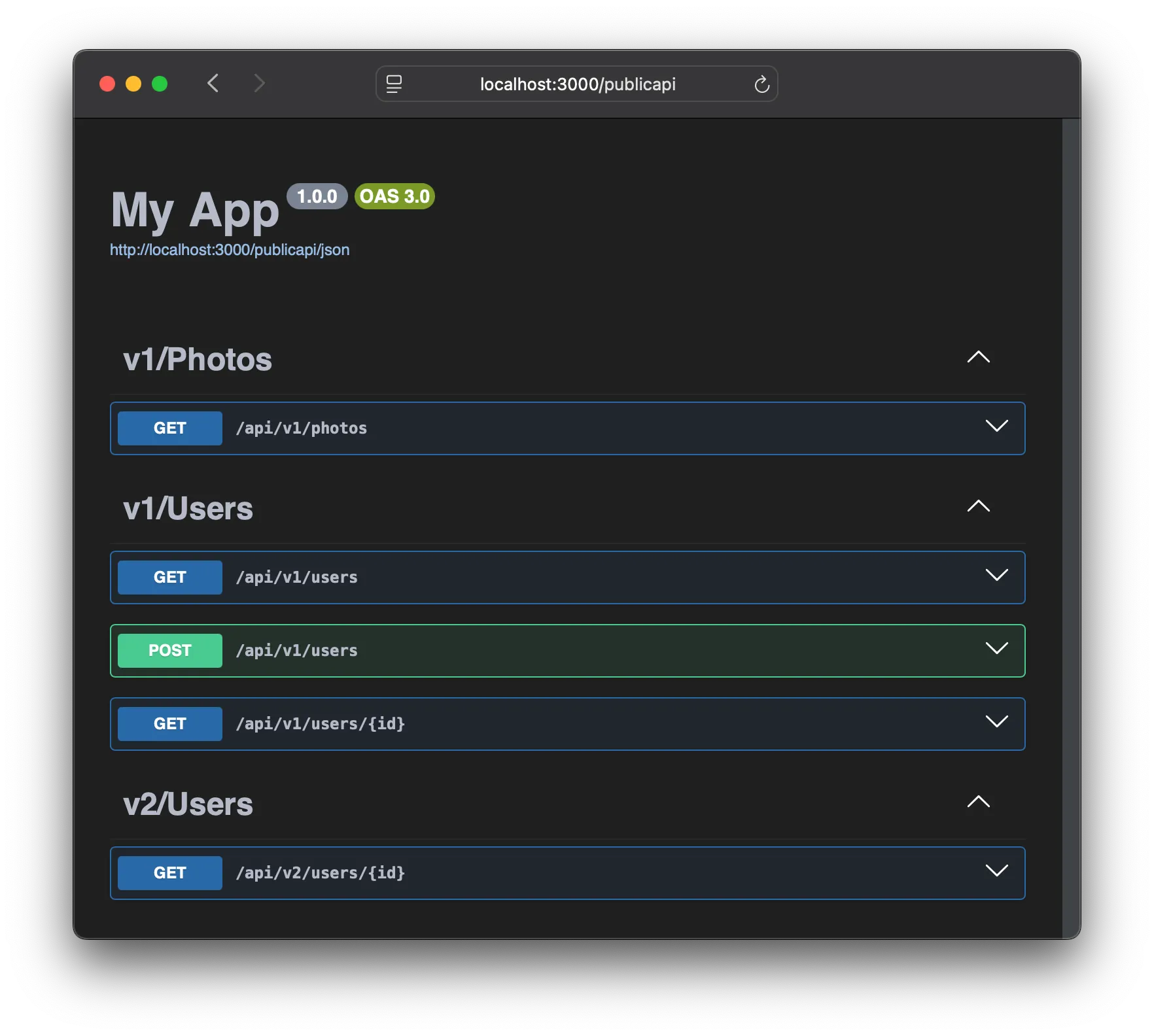

Start your server with rage s and visit http://localhost:3000/publicapi. You'll see an automatically generated specification listing all your endpoints:

Documenting Your API

While the auto-generated specification is a good start, you'll want to add descriptions, parameters, and response schemas to make it truly useful.

The Rage Approach

Rage::OpenAPI uses a simple, focused approach:

• No complex DSL - Instead of learning a complicated domain-specific language, you use familiar YARD-style tags
• Documentation in code - Tags go directly in your controllers, keeping docs close to implementation
• Focused scope - Covers the most common documentation needs without trying to expose every OpenAPI feature

This approach means you spend less time learning tools and more time building your API.

How Tags Work

You document your API using comment tags above controller actions:

• Action-level tags (like @description) apply to a specific action
• Class-level tags (like @deprecated) apply to all actions in that controller and any child controllers

Available Tags

Summary

Add a simple comment above your action to create a one-line summary:

class Api::V1::UsersController < ApplicationController
  # Returns the list of all active non-admin users.
  def index
  end
end

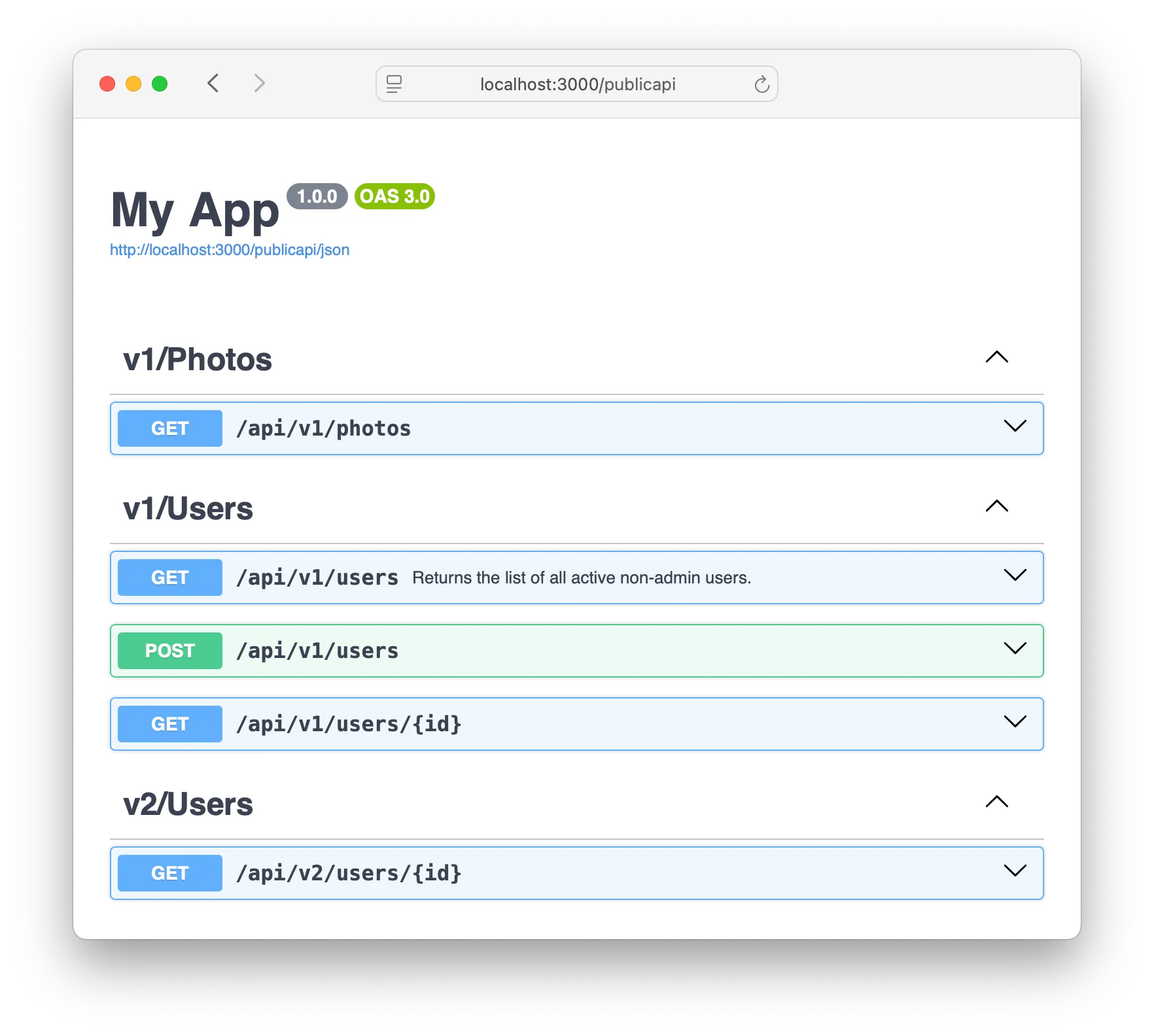

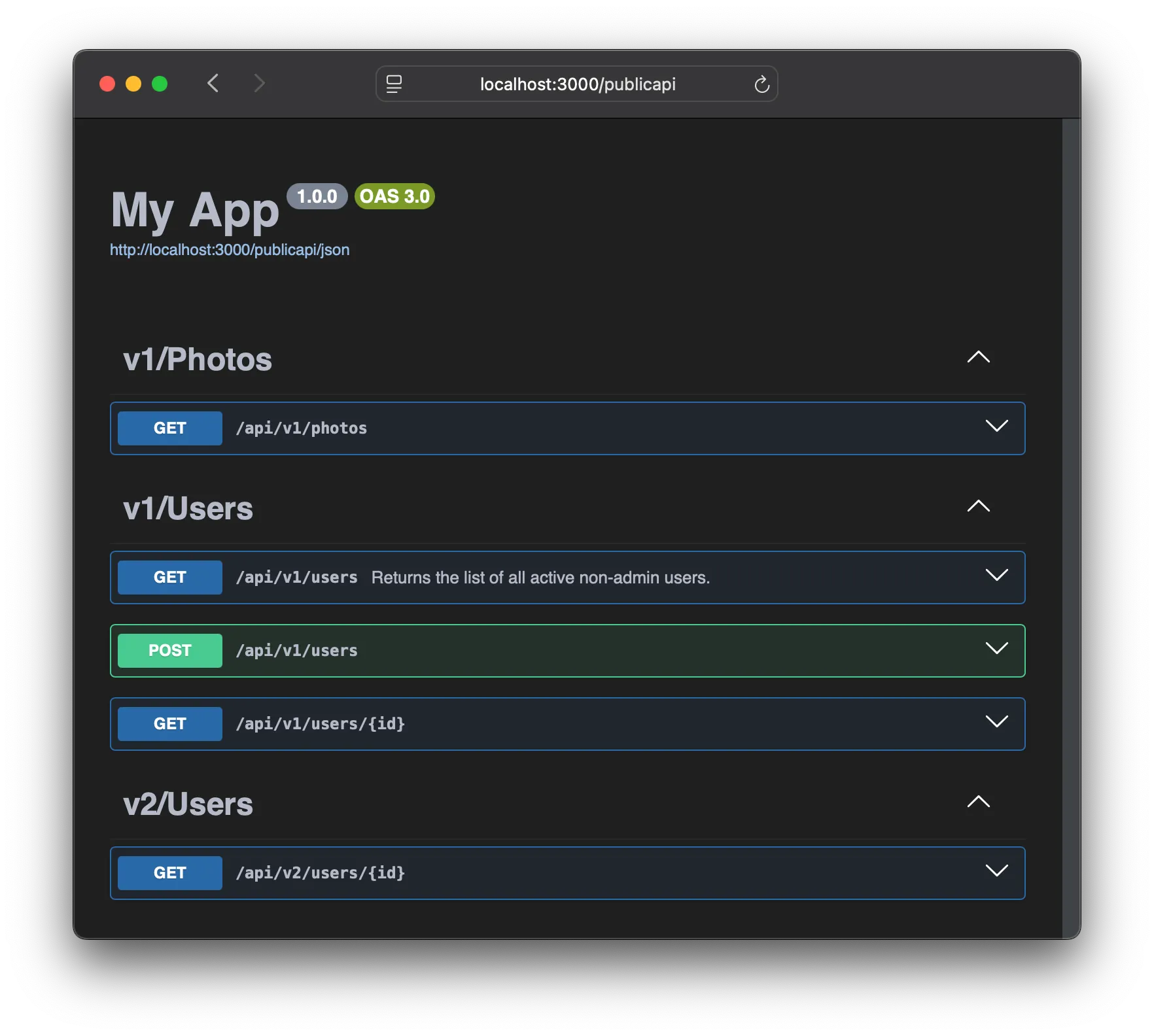

The summary appears in your OpenAPI specification:

Description

Use @description for longer, more detailed explanations. It supports Markdown formatting and can span multiple lines:

class Api::V1::UsersController < ApplicationController
  # Returns the list of all active non-admin users.
  # @description This endpoint provides access to all registered
  #   users in the system. Only **non-admin users** are included
  #   in the response.
  def show
  end
end

Version and Title

Use @version and @title to set metadata for your entire API specification. These tags should appear only once and set the title and version properties of the info object:

class ApplicationController < RageController::API
  # @version 1.0.0
  # @title User Management API
end

Internal Notes

Leave notes for other developers that won't appear in the public specification:

class Api::V1::UsersController < ApplicationController
  # @internal All changes to this action must be approved by a principal engineer.
  def create
  end
end

Deprecation

Mark individual actions as deprecated:

class Api::V1::UsersController < ApplicationController
  def index
  end

  # @deprecated
  def create
  end
end

Or mark an entire controller as deprecated (affects all actions and child controllers):

class Api::V1::UsersController < ApplicationController
  # @deprecated

  def index
  end

  def create
  end
end

Authentication

Document your authentication requirements using the @auth tag. It automatically tracks which endpoints require authentication based on your before_action callbacks:

class ApplicationController < RageController::API
  before_action :authenticate_by_token
  # @auth authenticate_by_token

  private

  def authenticate_by_token
    # Authentication logic
  end
end

Rage::OpenAPI automatically:

• Tracks all uses of the authenticate_by_token callback
• Respects skip_before_action calls
• Applies the security scheme only to protected endpoints

By default, it uses bearer token authentication:

type: http
scheme: bearer

Custom Security Schemes

Customize the security scheme by adding YAML inline:

class ApplicationController < RageController::API
  before_action :authenticate_by_token

  # @auth authenticate_by_token
  #   type: apiKey
  #   in: header
  #   name: X-API-Key
end

Multiple Security Schemes

Support multiple authentication methods:

class ApplicationController < RageController::API
  before_action :authenticate_by_user_token
  before_action :authenticate_by_service_token

  # @auth authenticate_by_user_token
  # @auth authenticate_by_service_token
end

Custom Scheme Names

Rename the security scheme in the specification:

class ApplicationController < RageController::API
  before_action :authenticate_by_token

  # @auth authenticate_by_token UserAuth
end

Responses

Rage::OpenAPI provides three ways to document response schemas:

1. Inline Schema

For simple responses, define the schema directly in the tag:

class Api::V1::UsersController < ApplicationController
  # @response { id: Integer, full_name: String, email: String }
  def show
  end
end

2. Shared References

For complex or reusable schemas, use shared references.

3. Automatic Schema Generation

Rage::OpenAPI can automatically generate schemas from ActiveRecord models or Alba serializers.

Given this Alba resource:

class UserResource
  include Alba::Resource

  root_key :user
  attributes :id, :name, :email
end

Reference it in your controller:

class Api::V1::UsersController < ApplicationController
  # @response UserResource
  def show
  end
end

This generates:

schema:
  type: object
  properties:
    user:
      type: object
      properties:
        id:
          type: string
        name:
          type: string
        email:
          type: string

Most Alba features are supported, including associations, key transformations, inheritance, and typed attributes.

Collections

Use Array<> or [] syntax for arrays:

class Api::V1::UsersController < ApplicationController
  # @response Array<UserResource>
  def index
  end
end

Namespace Resolution

Rage::OpenAPI takes namespaces into account. If you have Api::V1::UserResource and Api::V2::UserResource, referencing UserResource from Api::V2::UsersController automatically uses Api::V2::UserResource.

Multiple Status Codes

Document different responses for different status codes:

class Api::V1::UsersController < ApplicationController
  # @response 200 UserResource
  # @response 404 { error: String }
  def show
  end
end

Global Responses

Apply responses to all actions in a controller and its children:

class Api::V1::BaseController < ApplicationController
  # @response 404 { status: "NOT_FOUND" }
  # @response 500 { status: "ERROR", message: String }
end

Request Bodies

The @request tag works similarly to @response. It accepts inline schemas, shared references, or ActiveRecord models.

When using ActiveRecord models, Rage::OpenAPI automatically excludes internal attributes like id, created_at, updated_at, and type:

class Api::V1::UsersController < ApplicationController
  # @request User
  def create
  end
end

You can also use inline schemas:

class Api::V1::UsersController < ApplicationController
  # @request { name: String, email: String, password: String }
  def create
  end
end

Query Parameters

Document query parameters using the @param tag:

class Api::V1::UsersController < ApplicationController
  # @param account_id The account the records are attached to
  def index
  end
end

Optional Parameters

Add ? after the parameter name to mark it as optional:

class Api::V1::UsersController < ApplicationController
  # @param created_at? Filter records by creation date
  def index
  end
end

Parameter Types

Specify types using {} syntax:

class Api::V1::UsersController < ApplicationController
  # @param is_active {Boolean} Filter records by active status
  # @param page {Integer} Page number for pagination
  # @param per_page? {Integer} Items per page
  def index
  end
end

Shared References

For complex or reusable schemas, create a file with shared OpenAPI component definitions. This file can be in YAML or JSON format and must have a root components key.

Create config/openapi_components.yml:

components:
  schemas:
    User:
      type: object
      properties:
        id:
          type: integer
        name:
          type: string
        email:
          type: string
          format: email
    Error:
      type: object
      properties:
        message:
          type: string
        code:
          type: string

Reference these components in your controllers using JSON Pointer syntax:

class Api::V1::UsersController < ApplicationController
  # @response 200 #/components/schemas/User
  # @response 404 #/components/schemas/Error
  def show
  end
end

Controlling Visibility

Sometimes you want to hide certain endpoints from your public API documentation. Rage::OpenAPI provides two ways to control visibility.

Using @private

Hide individual actions:

class Api::V1::UsersController < ApplicationController
  def show
  end

  # @private
  def create
  end
end

Or hide entire controllers:

class Api::V1::UsersController < ApplicationController
  # @private

  def show
  end

  def create
  end
end

Namespace Filtering

Limit the specification to a specific namespace:

map "/publicapi" do
  run Rage::OpenAPI.application(namespace: "Api::V2")
end

This only includes controllers under Api::V2::.

Multiple Specifications

Create different specifications for different audiences:

map "/publicapi" do
  run Rage::OpenAPI.application(namespace: "Api::Public")
end

map "/internalapi" do
  use Rack::Auth::Basic do |user, password|
    user == "admin" && password == ENV["ADMIN_PASSWORD"]
  end
  run Rage::OpenAPI.application(namespace: "Api::Internal")
end

Custom Tag Organization

By default, Rage::OpenAPI groups endpoints by their controller namespace. For example, Api::V1::UsersController actions are grouped under the v1/Users tag.

You can customize this grouping with a tag resolver:

Rage.configure do
  config.openapi.tag_resolver = proc do |controller, action, default_tag|
    # Custom logic here
  end
end

The resolver receives three arguments:

• controller - The controller class
• action - The action name (symbol)
• default_tag - The original tag generated by Rage::OpenAPI

The resolver should return a string or array of strings representing the tag(s) for the endpoint.

Example: Multiple Tags

Rage.configure do
  config.openapi.tag_resolver = proc do |controller, action, default_tag|
    tags = [default_tag]

    if controller.name.include?("Admin")
      tags << "Admin"
    elsif controller.name.include?("Public")
      tags << "Public API"
    end

    tags
  end
end
